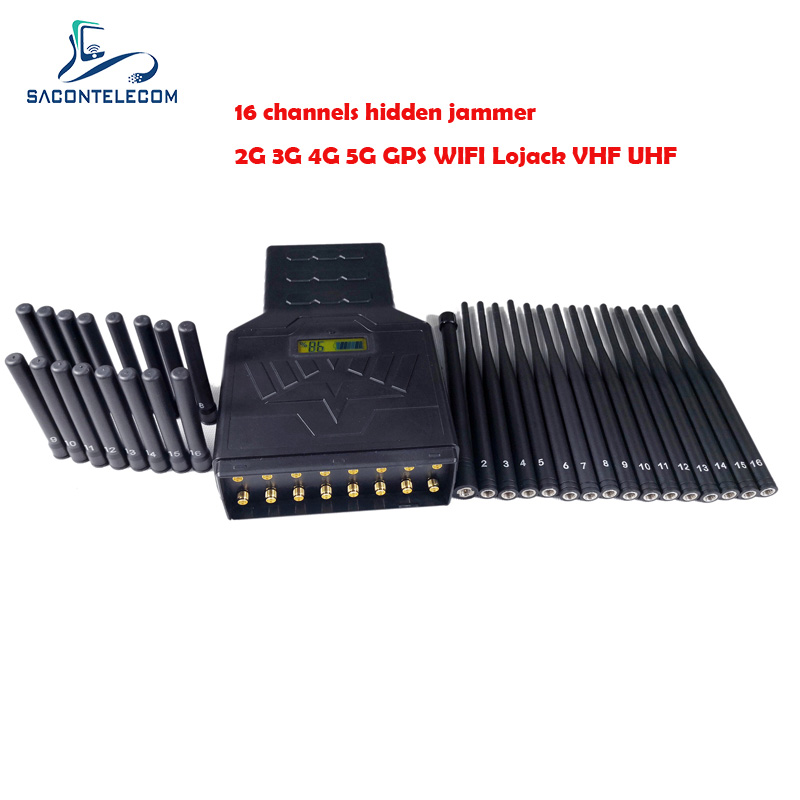

Hidden Drone Mobile Phone Network Jammer Handheld Signal Isolator
16 bands 16w Hidden Drone WiFi GPS Portable Mobile Phone Signal Jammer Factory Manufacturer
Descriptions of phone jammer:
This 16 antennas handheld jammer portable jammer has 2 kinds of antennas, hidden antennas and high gain antennas. 2 kinds of antennas are available with the package. The 16 channels mobile signal jammer with all frequencies cell phone GSM CDMA 2G 3G 4G 5G wifi 2.4g 5.2g 5.8g GPSL1 VHF UHF Lojack Walkie Talkie is popular by clients. Total power is 16w, radius is up to 20m range.
Battery is inside, works more than 2 hours after full charge. Battery capacity LCD display (Capacity percentage, working Voltage/Current ABS Shell with good cooling system with cooling fans inside and bigger hot sink, temperature lower than 50ºC. Car charge is available. With DIP switch, can turn on/off any signal band without affect other bands. OEM and ODM is available.
Applications of cellphone signal jammer:
Meeting room, conference rooms, museums, galleries, theaters, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus.
Specifications of wireless signal blocker:
| Key technical specifications: Mobile Phone 5G Signal Jammer SA-PJ16 (US Version) |
| Channel | Output port | Frequency range | Average out-putting power |
| Band 1 | VHF&LOJACK | 135-175MHz | 28.5dBm/0.7W |
| Band 2 | 4G700 | 700-803MHz | 28.5dBm/0.7W |
| Band 3 | 5G600 | 617-698MHz | 28.5dBm/0.7W |
| Band 4 | 3G | 2110-2180MHZ | 28.5dBm/0.7W |
| Band 5 | WIFI5.2G | 5100-5500MHz | 28.5dBm/0.7W |
| Band 6 | 4G1700 | 1710-1780MHz | 28.5dBm/0.7W |
| Band 7 | CDMA | 850-894MHz | 28.5dBm/0.7W |
| Band 8 | 4G2600 | 2500-2690MHZ | 28.5dBm/0.7W |
| Band 9 | RC315 | 315MHz | 28.5dBm/0.7W |
| Band 10 | RC433 | 433MHz | 28.5dBm/0.7W |
| Band 11 | 5G3600 | 3600-3900MHz | 28.5dBm/0.7W |
| Band 12 | 5G3400 | 3400-3600MHz | 28.5dBm/0.7W |
| Band 13 | GPSL1 | 1570-1580MHz | 28.5dBm/0.7W |
| Band 14 | WIFI2.4G/4G2300 | 2300-2500MHz | 28.5dBm/0.7W |
| Band 15 | PCS | 1920-2000MHz | 28.5dBm/0.7W |
| Band 16 | WIFI5.8G | 5500-5900MHz | 28.5dBm/0.7W |
| Key technical specifications: Mobile Phone 5G Signal Jammer SA-PJ16 (EU Version) |
| Channel | Output port | Frequency range | Average out-putting power |
| Band 1 | VHF&LOJACK | 135-175MHz | 28.5dBm/0.7W |
| Band 2 | 4G800 | 738-821MHz | 28.5dBm/0.7W |
| Band 3 | 5G1400 | 1427-1518MHz | 28.5dBm/0.7W |
| Band 4 | 3G | 2110-2170MHZ | 28.5dBm/0.7W |
| Band 5 | WIFI5.2G | 5100-5500MHz | 28.5dBm/0.7W |
| Band 6 | GPSL2L5 | 1170-1280MHz | 28.5dBm/0.7W |
| Band 7 | GSM | 925-960MHz | 28.5dBm/0.7W |
| Band 8 | 4G2600 | 2570-2690MHZ | 28.5dBm/0.7W |
| Band 9 | RC315 | 315MHz | 28.5dBm/0.7W |
| Band 10 | RC433 | 433MHz | 28.5dBm/0.7W |
| Band 11 | 5G3600 | 3600-3900MHz | 28.5dBm/0.7W |
| Band 12 | 5G3400 | 3300-3600MHz | 28.5dBm/0.7W |
| Band 13 | GPSL1 | 1570-1580MHz | 28.5dBm/0.7W |
| Band 14 | WIFI2.4G/4G2300 | 2345-2500MHz | 28.5dBm/0.7W |
| Band 15 | DCS | 1805-1880MHz | 28.5dBm/0.7W |
| Band 16 | WIFI5.8G | 5500-5900MHz | 28.5dBm/0.7W |
| Power supply: adapter 50 to 60Hz AC (110-240V AC/12V DC) Car Charger: DC12V IN |
Dimensions: (length ,width, height) 280x130x46mm (include hidden antenna)
Length of antenna :166mm Gain:2.0dbi |
| Packing size: 330*250*80mm Net weight: 1.5kg Gross weight: 2.0kg |
Total power: 12W
Shielding radius: (2-20) meters at -75dBm Still depends on the strength signal in given area
Built-in battery:7.4V/12000mAh Continue working: more than 2.0+ hours |
| Warranty: one year from delivery date |
FAQ of sacontelecom signal jammers:
1) Are you a factory or a trade?
We are a lead factory of mobile signal jammers in China.
2) What's your MOQ? Is sample available?
Yes. Sample is available with charge.
3) What's shipping method?
DHL, UPS, Fedex, TNT, EMS, Aramex and etc.
4) Payment term
TT via Bank, Western Union, method, Paypal.
5) Warranty
12 months after shipment date.
6) Delivery time
Always 3 working days after receive payment.
7) How long can I get it?
8-12 days after shipment.
Package Lists of RF signal jammer:
1pcs handheld Signal Jammer
32pcs antennas
1pcs AC Charger
1pcs car charger
